Product Features
Eight-year Warranty, Global Insurance
BMS automatic fault diagnosis, Provides multi-protection
IP67,Waterproof, Corrosion-Resistant
Automatic Shut-off for Safety
UN38.3, UL1642 Cell, Rohs, CE
Maintenance-free, Hands-off Convenience

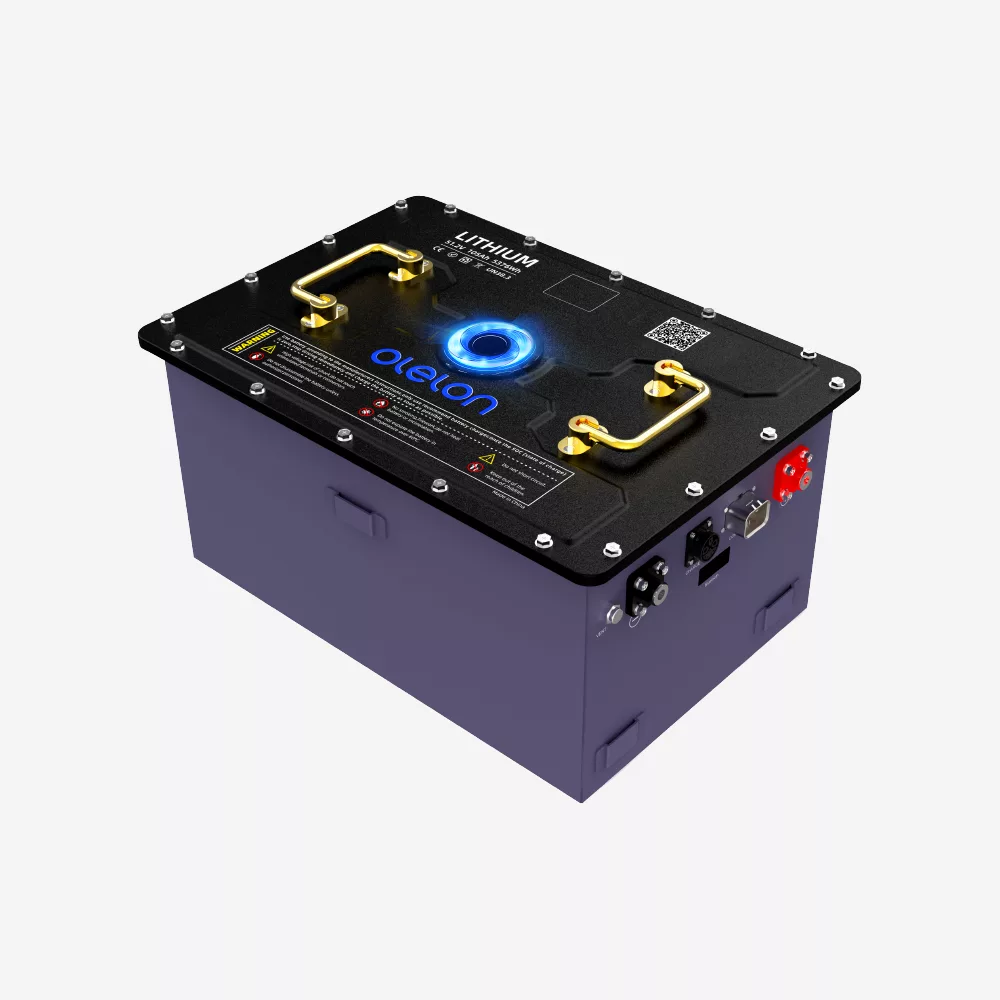

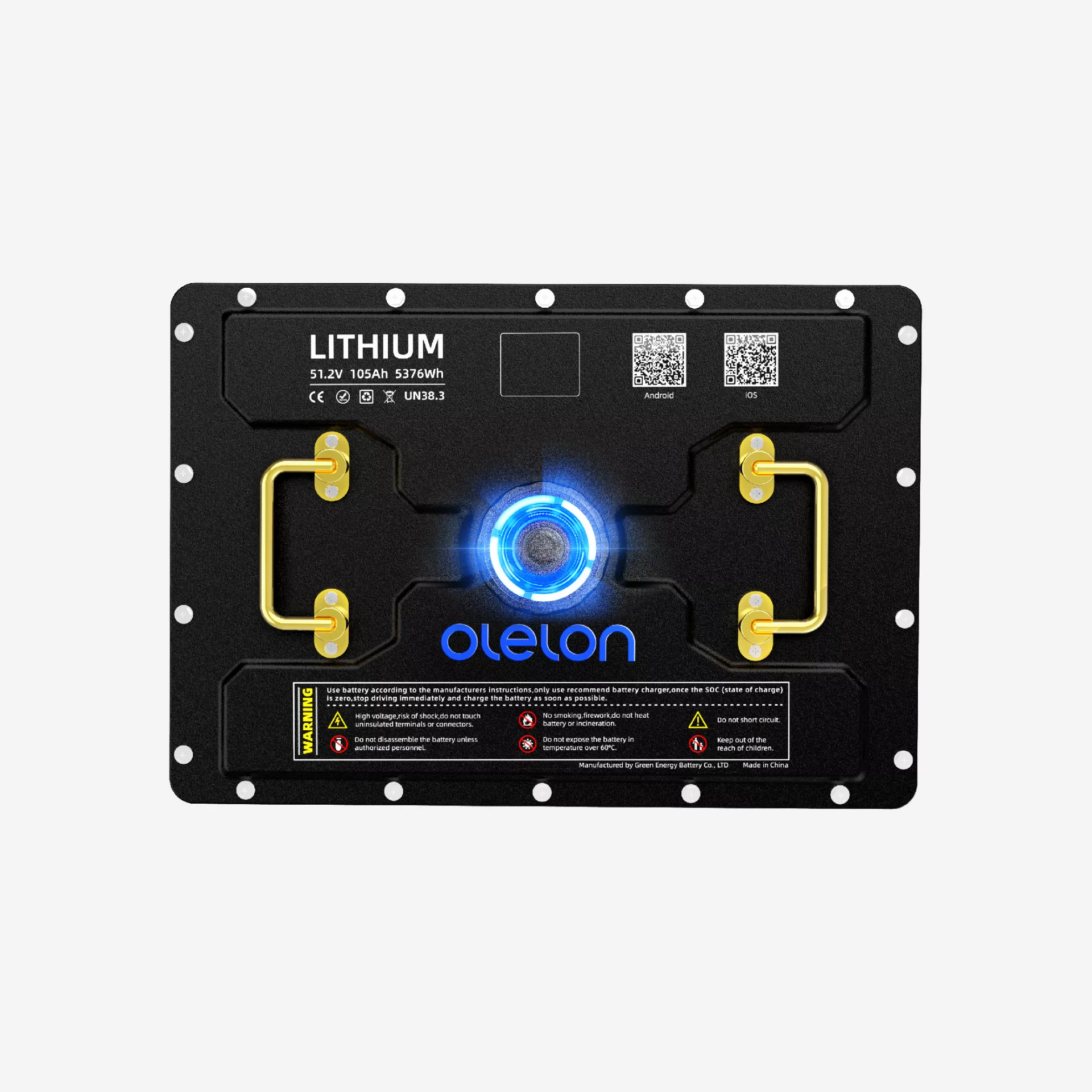

Large Voltage Smart Golf Cart Battery

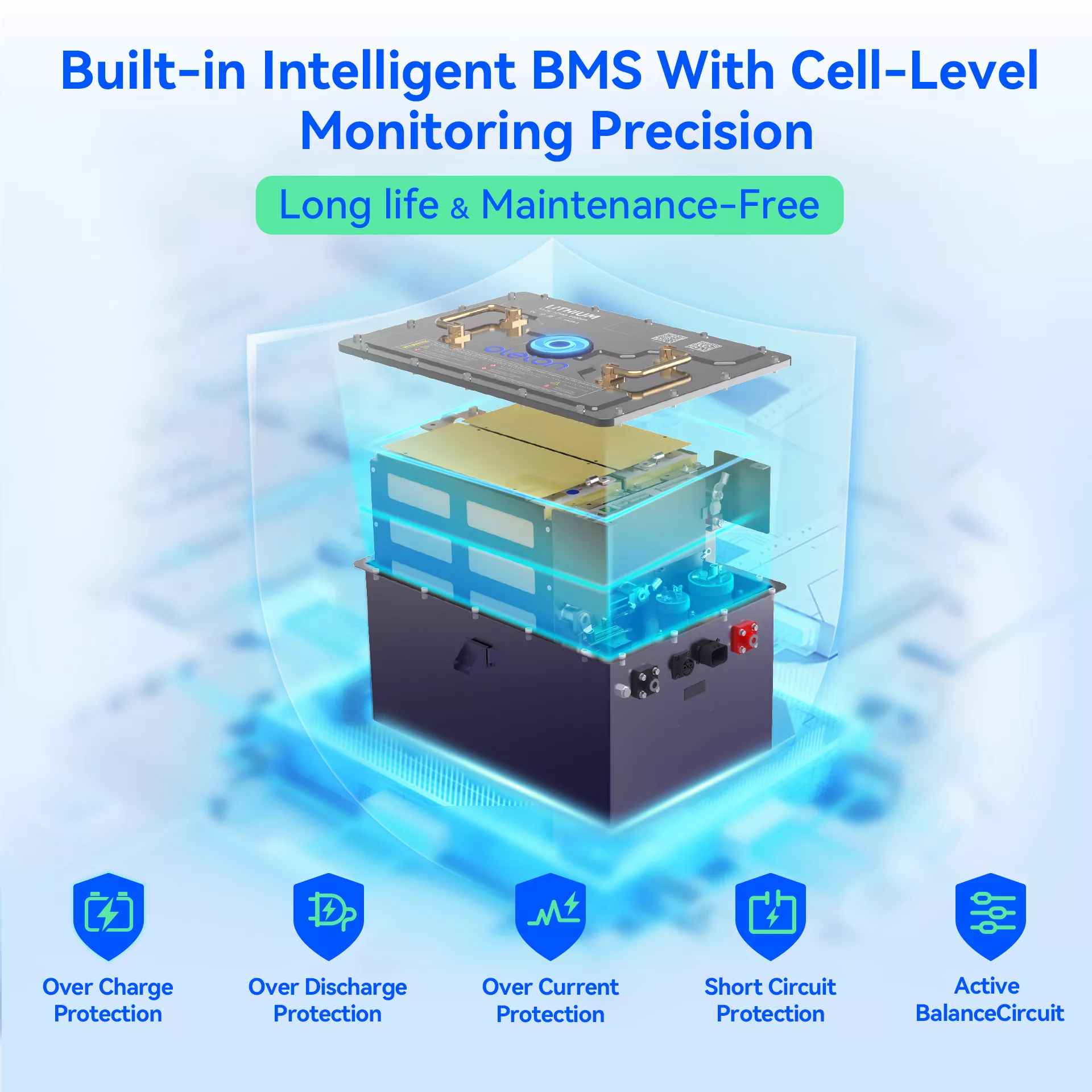

The smart battery pack (LiFePo4) has smart Advanced BMS patented technology. Multiple protections for voltage current, temperature, and short circuit provide customers with easy and comfortable power supply.
The smart battery is featured with function to monitor automobile battery through mobile app to achieve battenstatus real-time monitor at the users end. The remote diagnosis function is favorable to find out the cause of the problem.
The battery highlighted with high density, small size, light weight and reliable performance is ideal for low speed vehicles, electric utility vehicles and ground cleaning vehicles.
SPECS
| Items | 51.2V 105Ah | 51.2V 125Ah | 51.2V 150Ah | 51.2V 210Ah |
|---|---|---|---|---|
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Working Voltage | 43.2V – 58.4V | 43.2V – 58.4V | 43.2V – 58.4V | 43.2V – 58.4V |
| Nominal Capacity | 105Ah | 125Ah | 150Ah | 210Ah |
| Energy | 5,376Wh | 6,400Wh | 7,680Wh | 10,752Wh |
| IP Rating | IP67 | IP67 | IP67 | IP67 |
| Weight | 50kg (110.23 lbs) | 57kg (125.66 lbs) | 63kg (138.9 lbs) | 90kg (198.4 lbs) |
| Dimension (LxWxH) | 445x300x240mm (17.52”x11.81”x9.45”) | 463x323x258mm (18.2” x 12.7”x10.2”) | 510x375x240mm (20.1” x 14.8” x 9.5”) | 539x454x250mm (21.2” x 17.9” x 9.8”) |
| Charging Temp. Range | 32°F to 131°F | 32°F to 131°F | 32°F to 131°F | 32°F to 131°F |
| Max Continuous Discharge | 150A | 250A | 250A | 250A |
| Max Discharge 3 Sec | 480A | 480A | 480A | 480A |
| Max Discharge 30 Sec | 315A | 400A | 400A | 400A |
| Discharge Temp. Range | -22°F to 140°F | -22°F to 140°F | -22°F to 140°F | -22°F to 140°F |
Applications
Olelon offer connection accessories fully compatible with diverse golf carts and are accompanied by intuitive and straightforward instructions. Our battery ensures exceptional ease of use.
Suitable for Brands below:
Club Car E-Z-GO ICON EV Yamaha EPIC
Honor LSV Advanced EV Kodiak MOKE CARTS
Pilot Car Polaris Vivid EV Bintelli Others / OEM
Olelon smart batteries are compatible with nearly all golf cart models—not limited to only the brands listed above. For specific questions, please contact our customer service to give you satisfactory service.
GOLF CART LITHIUM ACCESSORIES
Dash Mounted Indicator Meter
Displays real-time voltage, amps, and remaining charge percentage.
Waterproof Charger
Charger with snap attachment, featuring reliability, safety, and short circuit protection.
Fixing Base
Secure the battery to the golf cart chassis, noting that mounting bases differ by vehicle model.
Dashboard and Switch Split Cable
Connect the battery to the battery dashboard and switch using this split cable.
Vehicle Charging Port Connector
Connects the electric golf cart battery to an external charger for safe charging.
Fastening accessories
Secured to the chassis with screws through hooks connecting the Battery Body Buckle to the carts.
DC-DC Converter (optional)
Converts 48V/36V golf cart batteries to stable 12V (60A, 720W max) for efficient accessory/light power.
US Charging Cable
EV charging cables safely power your car’s battery for convenient charging.
